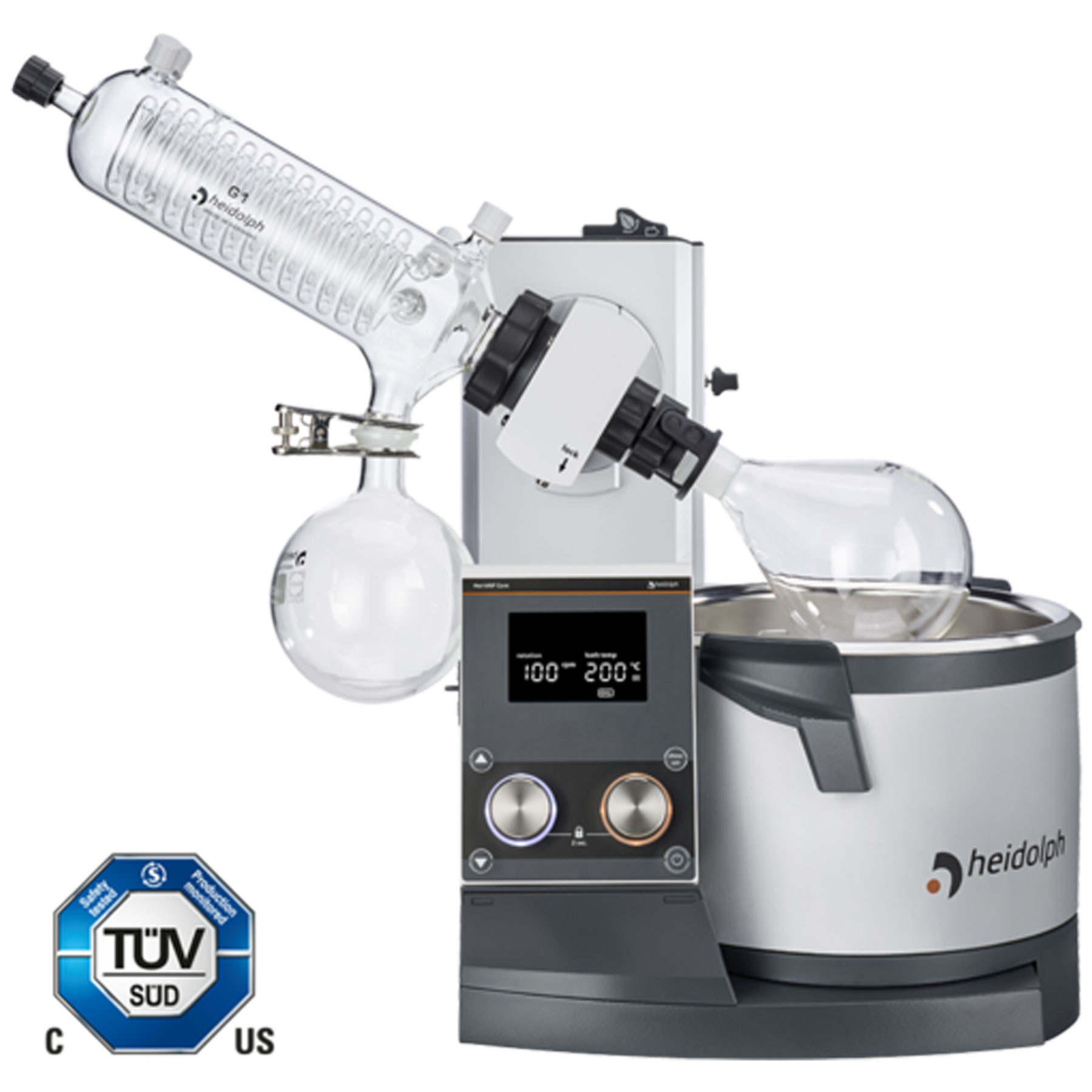

Hei-VAP Core

An operating concept that is focused on the essentials: clear and with access to the basic parameters rotation speed and heating bath temperature at any time.

• Clear digital display showing actual and set values
• Two separate knobs with dynamic control for setting the rotation speed and heating bath temperature: fast turning for large jumps, slow turning for precise setting of the set values
• Accidental changing of the values can be prevented by the lock function
• Intuitive LED ring light system makes activated functions clearly visible even from a distance
• Easy adjustment of the immersion depth up to 155 mm and the inclination angle from 20° to 80°
• Standby function and residual heat warning at heating bath temperatures above 50 °C
• Available as hand or motor lift models
• The standby button stops all functions and, when using a motor lift model, lifts the evaporating flask from the heating bath.

Hei-VAP Core - Technical Data

Lift:       Hand lift or Motor lift

Rotation speed range:  10 - 280 rpm

Rotation speed indicator:            3.5" LCD Display

Heating capacity:             1,300 W

Overheat protection bath:          cut-off at 5 °C over set temperature via separate PT 1000

Bath temperature setting:          3.5" LCD Display

Heating bath temperature control:         electronic / digital

Max. size evaporating flask:       5 l

Integrated vacuum controller:  -

Timer:  -

Integrated Hei-CHILL controller:               -

Vacuum program Dynamic AUTOaccurate

requires AUTOaccurate sensor -

Programmable ramps   -

Condensing surface:      1,400 cm²

Condensing surface XL condenser:         2,200 cm²
